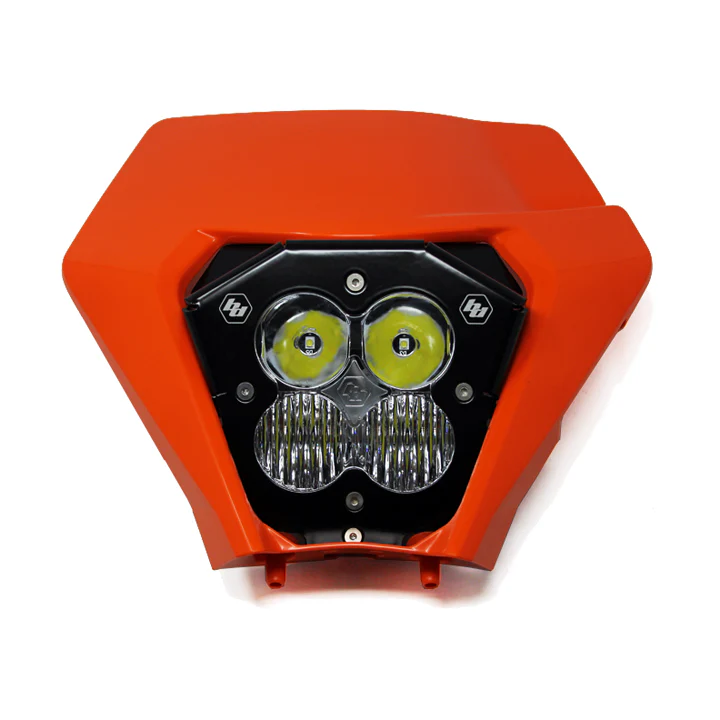

KTM LED Headlight Kit w/Shell XL Pro (20-On) D/C Baja Designs

If you're looking to go night riding look no further, our Baja Designs drop-in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability and features a significant amount of vertical and horizontal spread for ultimate trail coverage.

This specific model utilizes our XL Pro which produces 4600 lumens and features a 20 percent dimming feature. Installation on this kit is simple, with only a simple pin of the connectors, and comes with all necessary hardwear.

This kit comes preinstalled into a factory KTM Headlight mask (20-On). We offer this kit for the bikes that didn't come equipped with a headlight shell or for customers who don't want to disassemble their factory unit. This kit will require our harness to work with the factory Hi/Lo switch.

• Satisfaction Guarantee 30-Day Money Back Guarantee
• Limited Lifetime Warranty Complete Purchase Protection
• uService Replaceable Lenses And Optics
• ClearView All The Light, Right Where You Need It
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Only LED Driven At 100 Percent
• 5000K Daylight Less Driver Fatigue, Natural Color

Warnings and Cautions:
This kit will require the use of our 129016 wiring harness to use the Hi/Lo feature.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent

5000K Daylight - Less Driver Fatigue, Natural Color Specifications:

• Lumens: 4900 Utilizing 4 Cree LEDs
• Wattage/Amps: 40W / 2.9A
• Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
• Weight: 2.45 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized and Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft and Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Includes:

• XL Pro, LED KTM Kit With 2017-2019 Headlight Shell
• AC/DC Power convertor

Patterns:
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
